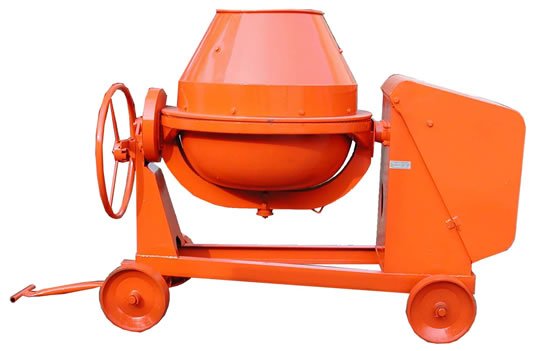

TK7TM Concrete Mixer


TK7TM Concrete Mixer

Technical Specifications :



MODEL

TK7TM

MIXING DRUM

Using heavy duty cast iron with mild steel pot

CAPACITY UNMIXED

10 cu. Ft. or 300 liters

CAPACITY MIXED

7 cu. Ft. or 210 liters

LOADING HEIGHT

37 in. or 940 mm

DRUM OPENING

21 in. or 533 mm

TRANSMISSION

Drive-unit-by roller chain and sprocket.
From driving shaft to drum-by level gear and roller type bearing.

CHASSIS CHANNELS

Fabricated from mild steel channels, plates and angles for Rigidity.

WHEELS

Cast Iron wheels are fitted in front and rear.

DISCHARGE

Discharge height is 16 in. or 406 mm. Tipping position is controlled by a hand wheel and can be fixed at various mixing positions.

PRIME MOVER

5 hp Singer cylinder air-cooled diesel engine.
